Description

Single pole + neutral 230 V~ neutral on left-hand side
C curve
Number of modules : 1

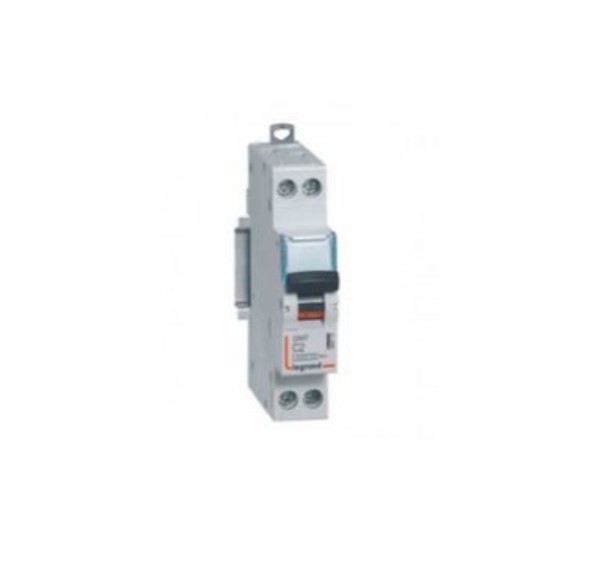

MCBs RX³ 4500 – thermal magnetic MCBs from 6 A to 63 A – C curve
Conform to IEC 60898-1
Do not accept auxiliaries, and add-on modules
Compatible with prong-type supply busbars
Breaking capacity:
4500 – IEC 60898-1 – 230/400 V~
4.5 kA – IEC 60947-2 – 230/400 V~
6000 – IEC 60898-1 – 127/220 V~
6 kA – IEC 60947-2 – 127/220 V~
